CakePHP Rhythm Plugin

Real-time application performance monitoring for CakePHP 5.x applications with comprehensive metric collection, storage, and visualization.

Features

Core Monitoring

Server Performance Monitoring - CPU, memory, disk usage, and system metrics
HTTP Request Tracking - Response times, status codes, and user request patterns
Database Query Performance - Slow query detection with configurable thresholds
Queue System Monitoring - Job processing, queue statistics, and performance metrics
Exception Tracking - Application exception monitoring and reporting
Outgoing Request Monitoring - External API calls and HTTP client performance
Cache Performance - Cache hit rates and performance metrics
Job Performance - Background job execution times and statistics

Advanced Features

Multi-Server Support - Monitor multiple servers with unified dashboard
Configurable Sampling - Adjustable sampling rates for different metric types
Grouping System - Automatic grouping of similar metrics to reduce cardinality
Real-time Dashboard - Live performance monitoring with interactive widgets
Flexible Storage - Database and Redis storage options with automatic aggregation
Event System - CakePHP event integration for custom metric recording
Command Line Tools - CLI commands for metric processing and server monitoring

Installation

Install the plugin via Composer:

bash

composer require crustum/rhythm

NOTE

This plugin should be registered in your config/plugins.php file.

bash

bin/cake plugin load Crustum/Rhythm

Or load the plugin in your Application.php:

php

public function bootstrap(): void
{
    parent::bootstrap();

    $this->addPlugin('Crustum/Rhythm', ['bootstrap' => true, 'routes' => true]);
}

TIP

After the plugin registers itself, it's recommended to install the configuration with the manifest system:

bash

bin/cake manifest install --plugin Crustum/Rhythm

The Rhythm plugin will create the config/rhythm.php configuration file and the config/rhythm_layouts.php file where you may register your application's widgets and layouts. Additionally, it will copy the migrations to the application's migrations directory and append the loading of the Rhythm configuration to the config/bootstrap.php file.

Database Migrations

Without manifest installation (plugin-level migrations):

bash

bin/cake migrations migrate -p Crustum/Rhythm

With manifest installation (migrations copied to application):

bash

bin/cake migrations migrate

NOTE

If you used the manifest system to install the plugin, the migrations have been copied to your application's config/Migrations directory and should be run using the application-level command without the -p flag.

Database Configuration

NOTE

Rhythm's storage implementation currently requires a MySQL, MariaDB, PostgreSQL.

By default, Rhythm.storage.database.connection is set to 'default' in the database configuration but you can change it to your own database connection.

Configuration

The plugin can be configured via the config/rhythm.php file:

php

return [
    'Rhythm' => [
        'enabled' => env('RHYTHM_ENABLED', true),

        'storage' => [
            'driver' => env('RHYTHM_STORAGE_DRIVER', 'database'),
            'database' => [
                'connection' => 'default',
                'tables' => [
                    'entries' => 'rhythm_entries',
                    'aggregates' => 'rhythm_aggregates',
                ],
            ],
            'cache' => [
                'config' => 'default',
                'prefix' => 'rhythm:',
            ],
        ],

        'ingest' => [
            'driver' => env('RHYTHM_INGEST_DRIVER', 'redis'),
            'redis' => [
                'host' => env('REDIS_HOST', '127.0.0.1'),
                'port' => env('REDIS_PORT', 6379),
                'password' => env('REDIS_PASSWORD', null),
                'database' => env('REDIS_DATABASE', 0),
                'queue_key' => 'rhythm:metrics:queue',
                'processing_key' => 'rhythm:metrics:processing',
                'control_channel' => 'rhythm:control',
                'max_items_per_digest' => 100,
                'trim' => [
                    'keep' => '1 hour',
                ],
            ],
        ],

        'recorders' => [
            'servers' => [
                'className' => \Crustum\Rhythm\Recorder\ServersRecorder::class,
                'enabled' => env('RHYTHM_SERVER_ENABLED', true),
                'server_name' => env('RHYTHM_SERVER_NAME', gethostname()),
                'directories' => explode(':', env('RHYTHM_SERVER_DIRECTORIES', '/')),
                'ignore' => [
                    '/^\/tmp/',
                    '/^\/var\/log/',
                    '/^\/proc/',
                    '/^\/sys/',
                ],
            ],
            'user_requests' => [
                'className' => \Crustum\Rhythm\Recorder\UserRequestsRecorder::class,
                'enabled' => env('RHYTHM_USER_REQUESTS_ENABLED', true),
                'sample_rate' => env('RHYTHM_USER_REQUESTS_SAMPLE_RATE', 1.0),
                'ignore' => [
                    '#^/rhythm#',
                    '#^/health#',
                ],
            ],
            'slow_queries' => [
                'className' => \Crustum\Rhythm\Recorder\SlowQueriesRecorder::class,
                'enabled' => env('RHYTHM_SLOW_QUERIES_ENABLED', true),
                'threshold' => env('RHYTHM_SLOW_QUERIES_THRESHOLD', 1000),
                'sample_rate' => env('RHYTHM_SLOW_QUERIES_SAMPLE_RATE', 0.1),
            ],
            'exceptions' => [
                'className' => \Crustum\Rhythm\Recorder\ExceptionsRecorder::class,
                'enabled' => env('RHYTHM_EXCEPTIONS_ENABLED', true),
                'sample_rate' => env('RHYTHM_EXCEPTIONS_SAMPLE_RATE', 1.0),
            ],
            'queues' => [
                'className' => \Crustum\Rhythm\Recorder\QueuesRecorder::class,
                'enabled' => env('RHYTHM_QUEUES_ENABLED', true),
                'sample_rate' => env('RHYTHM_QUEUES_SAMPLE_RATE', 1.0),
            ],
            'slow_jobs' => [
                'className' => \Crustum\Rhythm\Recorder\SlowJobsRecorder::class,
                'enabled' => env('RHYTHM_SLOW_JOBS_ENABLED', true),
                'threshold' => env('RHYTHM_SLOW_JOBS_THRESHOLD', 5000),
                'sample_rate' => env('RHYTHM_SLOW_JOBS_SAMPLE_RATE', 0.1),
            ],
            'slow_requests' => [
                'className' => \Crustum\Rhythm\Recorder\SlowRequestsRecorder::class,
                'enabled' => env('RHYTHM_SLOW_REQUESTS_ENABLED', true),
                'threshold' => env('RHYTHM_SLOW_REQUESTS_THRESHOLD', 2000),
                'sample_rate' => env('RHYTHM_SLOW_REQUESTS_SAMPLE_RATE', 0.1),
            ],
            'outgoing_requests' => [
                'className' => \Crustum\Rhythm\Recorder\OutgoingRequestRecorder::class,
                'enabled' => env('RHYTHM_OUTGOING_REQUESTS_ENABLED', true),
                'threshold' => env('RHYTHM_OUTGOING_REQUESTS_THRESHOLD', 1000),
                'sample_rate' => env('RHYTHM_OUTGOING_REQUESTS_SAMPLE_RATE', 0.1),
                'groups' => [
                    '#^https?://api\.([^/]+)\.com/([^/]+)/(\d+)#' => 'https://api.*.com/*/*',
                    '#^https?://([^/]+)\.api\.([^/]+)\.com/([^/]+)#' => 'https://*.api.*.com/*',
                    '#^https?://([^/]+)\.com/api/v(\d+)/([^/]+)#' => 'https://*.com/api/v*/*',
                    '#^https?://([^/]+)\.com/([^/]+)/(\d+)#' => 'https://*.com/*/*',
                ],
            ],
        ],

        'buffer' => env('RHYTHM_BUFFER', 5000),
        'trim' => [
            'keep' => env('RHYTHM_TRIM_KEEP', '24 hours'),
        ],
    ],
];

Environment Variables

Set these environment variables to configure Rhythm:

bash

# Enable Rhythm
RHYTHM_ENABLED=true

# Storage configuration
RHYTHM_STORAGE_DRIVER=database

# Ingest configuration
RHYTHM_INGEST_DRIVER=redis

# Redis configuration (if using Redis ingest)
REDIS_HOST=127.0.0.1
REDIS_PORT=6379
REDIS_PASSWORD=your_password
REDIS_DATABASE=0

# Recorder configuration
RHYTHM_SERVER_ENABLED=true
RHYTHM_USER_REQUESTS_ENABLED=true
RHYTHM_SLOW_QUERIES_ENABLED=true
RHYTHM_EXCEPTIONS_ENABLED=true
RHYTHM_QUEUES_ENABLED=true
RHYTHM_SLOW_JOBS_ENABLED=true
RHYTHM_SLOW_REQUESTS_ENABLED=true
RHYTHM_OUTGOING_REQUESTS_ENABLED=true

Usage

Data Flow Architecture

Rhythm uses a two-phase approach for efficient metric collection:

Ingest Phase: Metrics are collected in memory during requests and stored in a persistent queue
Digest Phase: Queued metrics are processed into final storage with automatic aggregation

This approach solves PHP's "run and die" problem by persisting metrics between requests.

Automatic Monitoring

The plugin automatically monitors:

Server performance metrics (CPU, memory, disk)
HTTP requests and response times
Database query performance
Application exceptions
Queue system performance
Background job execution
Outgoing HTTP requests
Cache performance

Manual Metric Recording

You can also record custom metrics:

php

// In a controller or service
$rhythm = $this->getContainer()->get(\Crustum\Rhythm\Rhythm::class);

// Record a simple metric
$rhythm->record('custom_metric', 'user_action', 150);

// Set a metric value
$rhythm->set('config_value', 'cache_hit_rate', '85.5');

// Record with aggregations
$rhythm->record('performance', 'api_call', 250)
    ->count()
    ->avg()
    ->max();

Processing Metrics

Metrics are automatically ingested when the buffer is full. To process queued metrics:

Redis Ingest (Default)

bash

# Process metrics from Redis queue
bin/cake rhythm digest

Null Ingest (Testing/Development)

The Null Ingest driver discards all metrics, useful for:

Testing environments where you don't want metric overhead
Temporarily disabling metrics without changing configuration
Development when you want zero metric collection

php

// In config/rhythm.php
'ingest' => [
    'driver' => 'null', // Discard all metrics
],

No additional commands needed - all metrics are silently discarded.

Recommended: Set up a cron job to run digest periodically:

bash

# Every 5 minutes
*/5 * * * * cd /path/to/your/app && bin/cake rhythm digest

Server Monitoring

Monitor server performance with the check command:

bash

# Take a single server snapshot
bin/cake rhythm check --once

# Monitor continuously with 5-second intervals
bin/cake rhythm check --interval=5

Dashboard Access

Access the Rhythm dashboard at /rhythm/dashboard to view: Server state and performance metrics

Queue activity and statistics
Slow queries and requests
Exception tracking
Cache performance
Outgoing request monitoring
Job performance metrics

Available Recorders

ServersRecorder

Monitors server performance metrics including CPU, memory, and disk usage.

UserRequestsRecorder

Tracks HTTP requests, response times, and user request patterns.

SlowQueriesRecorder

Monitors database query performance and identifies slow queries.

ExceptionsRecorder

Tracks application exceptions for debugging and monitoring.

QueuesRecorder

Monitors queue system performance and job processing statistics.

SlowJobsRecorder

Tracks background job execution times and identifies slow jobs.

SlowRequestsRecorder

Identifies slow HTTP requests based on configurable thresholds.

OutgoingRequestRecorder

Monitors external API calls and HTTP client performance with automatic URI grouping.

GitRecorder

Captures Git repository information including current branch, recent commits, and repository status. Automatically detects Git repositories and provides commit classification and metadata tracking.

Available Widgets

ServerStateWidget

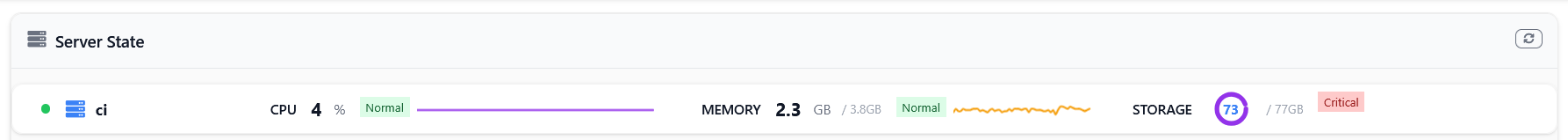

Server State Widget

Shows real-time server performance with CPU, memory, and disk usage. Displays sparkline charts and status indicators for each server. Shows online/offline status.

QueuesWidget

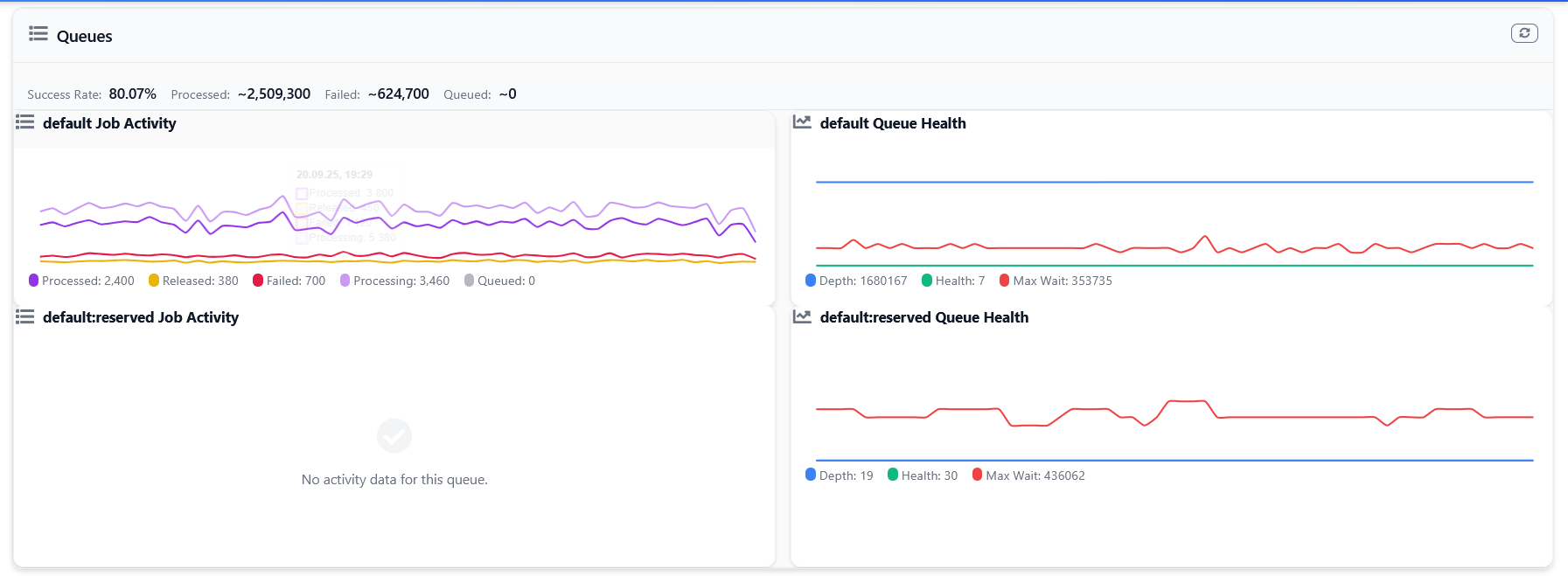

Queues Widget

Shows job queues with charts showing job states (queued, processing, processed, failed). Shows queue depth, health, and wait times with success rate tracking.

SlowQueriesWidget

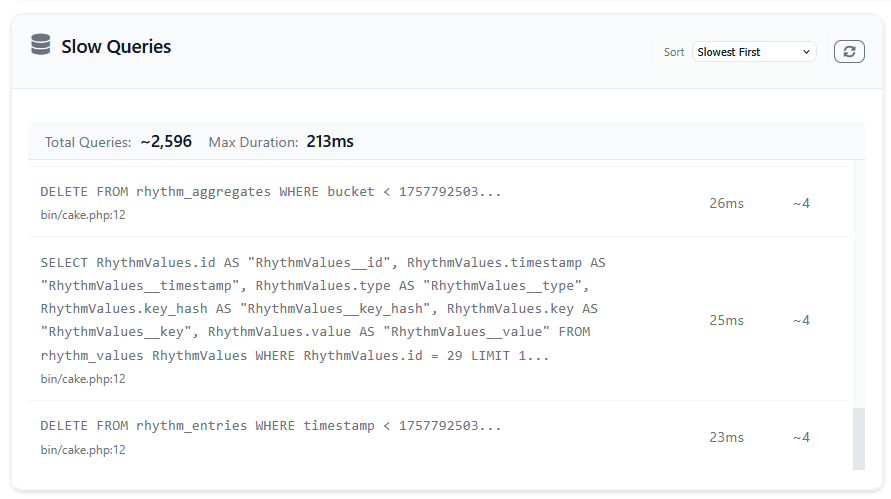

Slow Queries Widget

Shows slow database queries with execution times and locations. Shows top 10 slowest queries with sorting options to help find performance issues.

ExceptionsWidget

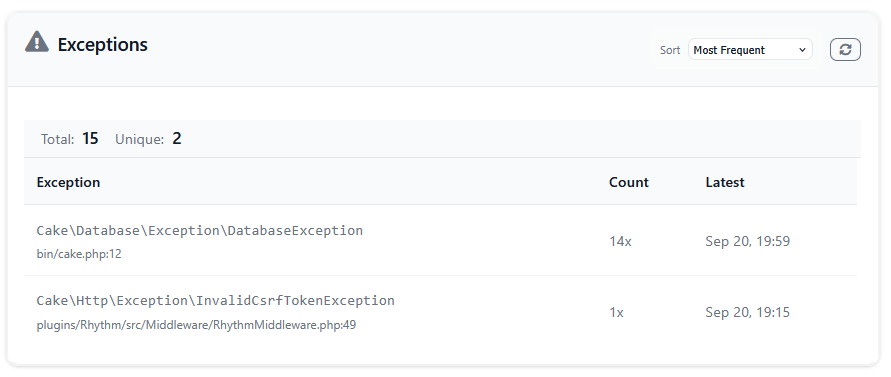

Exceptions Widget

Shows application errors and exceptions. Groups by error type and shows frequency counts with sorting by frequency or latest occurrence.

SlowRequestsWidget

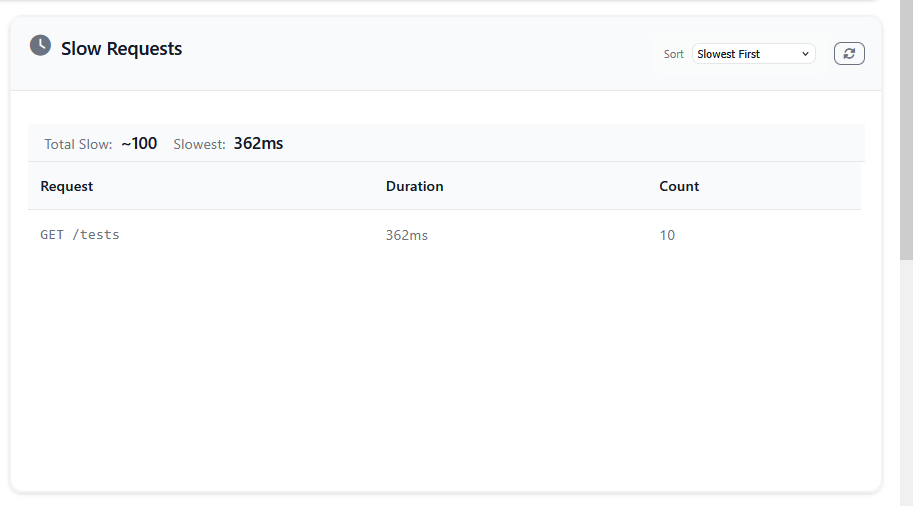

Slow Requests Widget

Shows slow HTTP requests with method, path, and response times. Displays top 10 slowest requests with status codes to identify web performance issues.

SlowOutgoingRequestsWidget

Shows external API calls with grouped URLs and response times. Shows slowest external requests to help optimize API usage.

SlowJobsWidget

Shows slow background jobs with execution times and status. Shows top 10 slowest jobs with sorting options for job performance monitoring.

UsageWidget

Displays system resource usage including memory, response times, and request counts. Shows status indicators for each metric.

AppInfoWidget

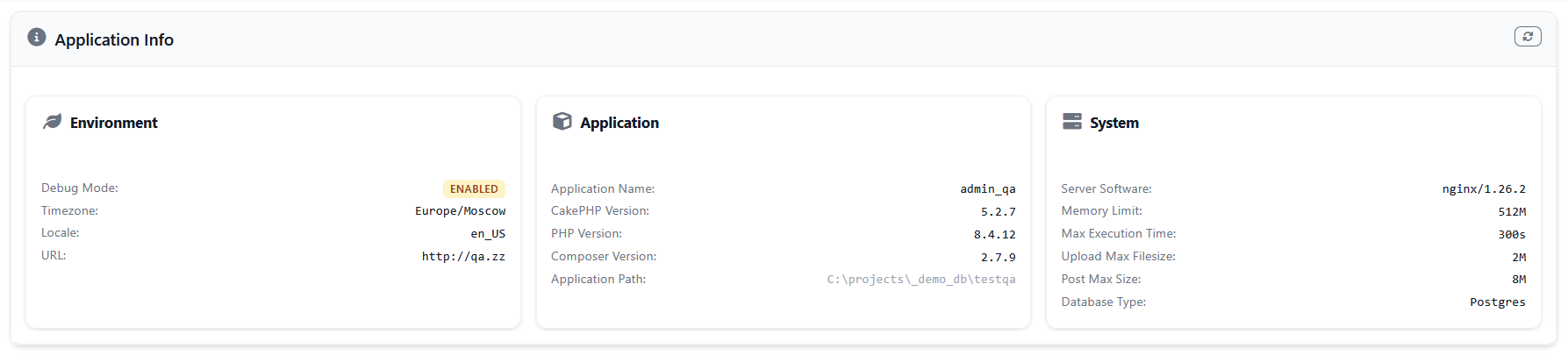

App Info Widget

Displays comprehensive application information including CakePHP version, PHP version, debug mode status, system configuration, and database information. Provides a quick overview of your application's environment and configuration with detailed system metrics.

GitWidget

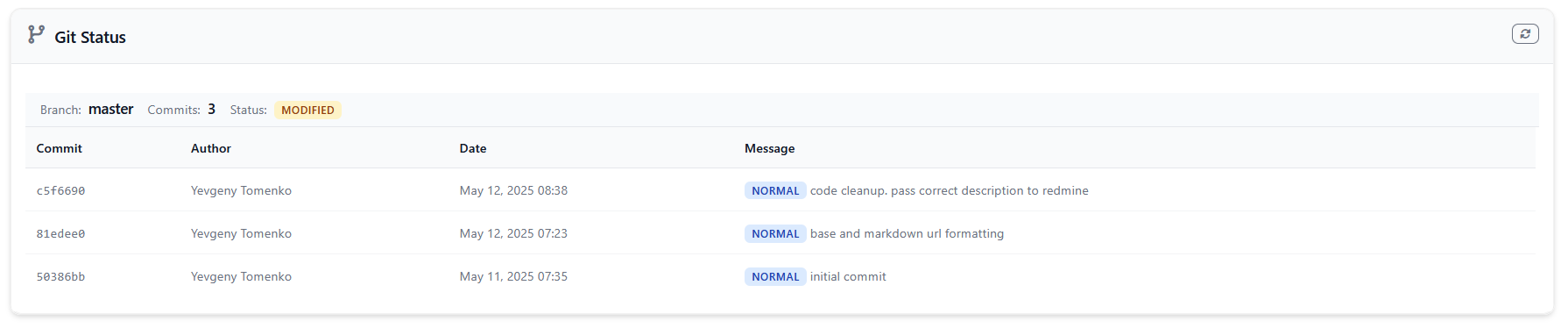

Git Status Widget

Displays current Git repository information including the active branch, recent commits, and repository status. Helps track deployment status and recent changes with commit classification and metadata.

Command Line Tools

rhythm digest

Process queued metrics into final storage.

rhythm check

Monitor server performance and collect metrics.

rhythm clear

Clear all stored metrics and aggregates.

rhythm purge

Purge specific metric types or all data.

Event System

Rhythm dispatches events for external integrations:

Available Events

Rhythm.metric.recorded - When a metric is recorded
Rhythm.digest.completed - When metrics are processed to final storage
Rhythm.server.beat - Server performance snapshot events

Listening to Events

php

// In a service or component
public function implementedEvents(): array
{
    return [
        'Rhythm.metric.recorded' => 'handleMetricRecorded',
        'Rhythm.digest.completed' => 'handleDigestCompleted',
    ];
}

public function handleMetricRecorded(EventInterface $event): void
{
    $data = $event->getData();
    // Handle metric recording
}

public function handleDigestCompleted(EventInterface $event): void
{
    $data = $event->getData();
    // Handle digest completion
}

Database Schema

The plugin creates these main tables:

rhythm_entries

Stores raw metric entries with timestamps and values.

rhythm_aggregates

Stores pre-aggregated metrics for efficient querying and dashboard display.

API Reference

Rhythm Class

record(string $type, string $key, ?int $value = null, ?int $timestamp = null): RhythmEntry
set(string $type, string $key, string $value, ?int $timestamp = null): RhythmValue
ingest(): int - Process queued entries
aggregate(string $type, array|string $aggregates, int $intervalMinutes): Collection
aggregateTotal(string $type, array|string $aggregates, int $intervalMinutes): float|Collection
graph(string $type, string $aggregate, int $intervalMinutes): Collection
values(string $type, ?array $keys = null): Collection - Get values for a type
report(Throwable $exception): $this - Report exceptions
trim(): void - Remove old data
purge(?array $types = null): void - Clear data

Storage Interface

store(CollectionInterface $entries): void
aggregate(string $type, array|string $aggregates, int $intervalMinutes): CollectionInterface
trim(): void - Remove old data
purge(?array $types = null): void - Clear data

Contributing

Fork the repository
Create a feature branch
Make your changes
Add tests
Submit a pull request

License

This plugin is licensed under the MIT License.

CakePHP Rhythm Plugin ​

Features ​

Core Monitoring ​

Advanced Features ​

Installation ​

Database Migrations ​

Database Configuration ​

Configuration ​

Environment Variables ​

Usage ​

Data Flow Architecture ​

Automatic Monitoring ​

Manual Metric Recording ​

Processing Metrics ​

Redis Ingest (Default) ​

Null Ingest (Testing/Development) ​

Server Monitoring ​

Dashboard Access ​

Available Recorders ​

ServersRecorder ​

UserRequestsRecorder ​

SlowQueriesRecorder ​

ExceptionsRecorder ​

QueuesRecorder ​

SlowJobsRecorder ​

SlowRequestsRecorder ​

OutgoingRequestRecorder ​

GitRecorder ​

Available Widgets ​

ServerStateWidget ​

QueuesWidget ​

SlowQueriesWidget ​

ExceptionsWidget ​

SlowRequestsWidget ​

SlowOutgoingRequestsWidget ​

SlowJobsWidget ​

UsageWidget ​

AppInfoWidget ​

GitWidget ​

Command Line Tools ​

rhythm digest ​

rhythm check ​

rhythm clear ​

rhythm purge ​

Event System ​

Available Events ​

Listening to Events ​

Database Schema ​

rhythm_entries ​

rhythm_aggregates ​

API Reference ​

Rhythm Class ​

Storage Interface ​

Contributing ​

License ​

CakePHP Rhythm Plugin

Features

Core Monitoring

Advanced Features

Installation

Database Migrations

Database Configuration

Configuration

Environment Variables

Usage

Data Flow Architecture

Automatic Monitoring

Manual Metric Recording

Processing Metrics

Redis Ingest (Default)

Null Ingest (Testing/Development)

Server Monitoring

Dashboard Access

Available Recorders

ServersRecorder

UserRequestsRecorder

SlowQueriesRecorder

ExceptionsRecorder

QueuesRecorder

SlowJobsRecorder

SlowRequestsRecorder

OutgoingRequestRecorder

GitRecorder

Available Widgets

ServerStateWidget

QueuesWidget

SlowQueriesWidget

ExceptionsWidget

SlowRequestsWidget

SlowOutgoingRequestsWidget

SlowJobsWidget

UsageWidget

AppInfoWidget

GitWidget

Command Line Tools

rhythm digest

rhythm check

rhythm clear

rhythm purge

Event System

Available Events

Listening to Events

Database Schema

rhythm_entries

rhythm_aggregates

API Reference

Rhythm Class

Storage Interface

Contributing

License
